MS8VP1-2

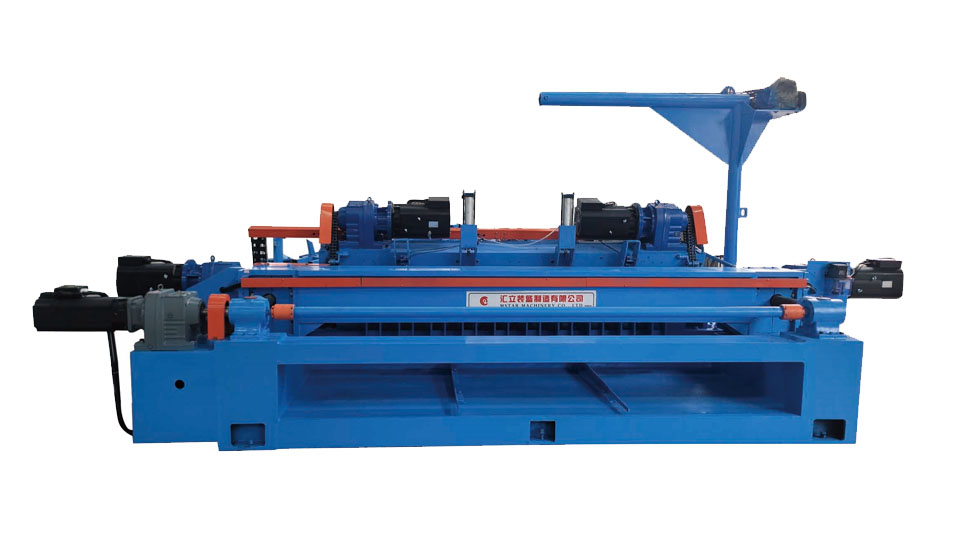

8 Feet 80M/MIN Spindleless Veneer Peeling Machine
Advantages
- Peeling speed is adjustable. Veneer output speed can be 30-80M/MIN.
- Save power for 30% - 50%. Normally the running current only the 50% of the rated current.
- Good quality of the veneer, smooth and evenness, thickness err plus and minus 0.05MM.
- Stable the roller running speed, reduce the influence of the voltage fluctuate.
- Automatic speed down when peeling end, reduce the shock of the machine, makes bearings and machine long durable.
- Advanced control system and core technology.
Parameters
| Parameter | Value |
|---|---|
| Max Log Length | 2600 MM |
| Max Log Diameter | 500 MM |
| Min Core Log | 32 MM |
| Veneer Thickness | 0.5 - 4.0 MM |
| Veneer Output Speed | 30 - 80 M/MIN (adjustable) |
| Total Power | 68.2 KW |
| Machine Size | 6000 * 2300 * 1600 MM |
| Machine Weight | 11800 KG |
