MS4VP2-3

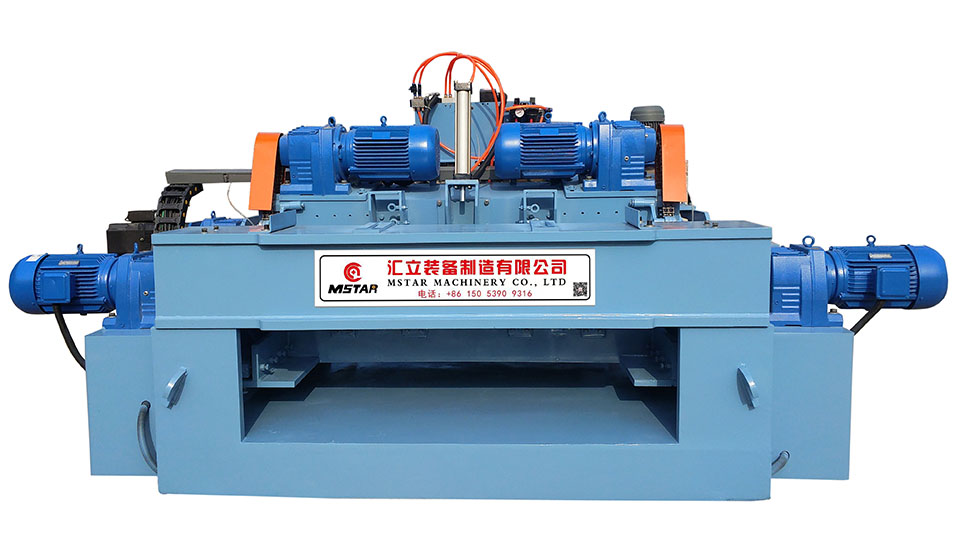

4 Feet 80M/MIN Spindleless Veneer Peeling Machine

Spindleless Lathe MS4VP2-3
MS4VP2-3

Key Specifications

  • Max Log Length 1400 MM
  • Max Log Diameter 500 MM
  • Min Core Log 28 MM
  • Veneer Thickness 0.5 - 4.0 MM
  • Veneer Output Speed 30 - 80 M/MIN (adjustable)
  • Total Power 42 KW

Interested in this machine?

Send us your raw material and target capacity. We will recommend the right configuration and come back with a quotation.

Request a quotation

Advantages

Benefits
  • Good quality of the veneer, smooth and evenness, thickness err plus and minus 0.05MM.
  • Advanced control system and core technology.
  • The machine is the clipper integrated model, peeling and clipping at same time.

Specifications

Parameters
Parameter Value
Max Log Length 1400 MM
Max Log Diameter 500 MM
Min Core Log 28 MM
Veneer Thickness 0.5 - 4.0 MM
Veneer Output Speed 30 - 80 M/MIN (adjustable)
Total Power 42 KW
Machine Size 4300 * 2300 * 1600 MM
Machine Weight 6500 KG
