MS4VP3-1

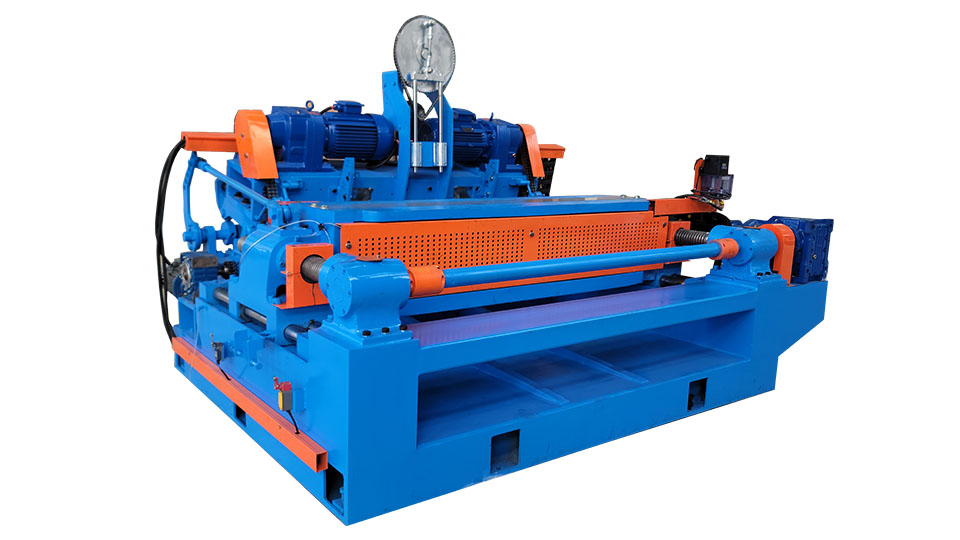

4 Feet Double Roller Motion 100M/MIN Spindleless Veneer Peeling Machine

Spindleless Lathe MS4VP3-1
MS4VP3-1

Key Specifications

  • Max Log Length 1400 MM
  • Max Log Diameter 500 MM
  • Min Core Log 28 MM
  • Veneer Thickness 0.5 - 4.0 MM
  • Veneer Output Speed 50 - 100 M/MIN (adjustable)
  • Total Power 45.5 KW

Interested in this machine?

Send us your raw material and target capacity. We will recommend the right configuration and come back with a quotation.

Request a quotation

Advantages

Benefits
  • Highest speed of the veneer peeling machine in China. Peeling speed can be fast as 100M/MIN.
  • Save power for 30% - 50%. Normally the running current only the 50% of the rated current.
  • Good quality of the veneer, smooth and evenness, thickness err plus and minus 0.05MM.
  • Stable the roller running speed, reduce the influence of the voltage fluctuate.
  • Automatic speed down when peeling end, reduce the shock of the machine, makes bearings and machine long durable.
  • Advanced control system and core technology.
  • Clipper integrated model, peeling and clipping at same time.

Specifications

Parameters
Parameter Value
Max Log Length 1400 MM
Max Log Diameter 500 MM
Min Core Log 28 MM
Veneer Thickness 0.5 - 4.0 MM
Veneer Output Speed 50 - 100 M/MIN (adjustable)
Total Power 45.5 KW
Machine Size 2310 * 3200 * 2100 MM
Machine Weight 7500 KG
