Key Specifications

Machine Weight 10000 KG
Max Opening 500 MM
Veneer Thickness 1.7 - 7.0 MM
Roller Motors 2 x 11 KW Servo
Feeding Motor 11 KW Servo
Knife Motor 1.5 KW Servo

Interested in this machine?

Send us your raw material and target capacity. We will recommend the right configuration and come back with a quotation.

Request a quotation

Description

Overview

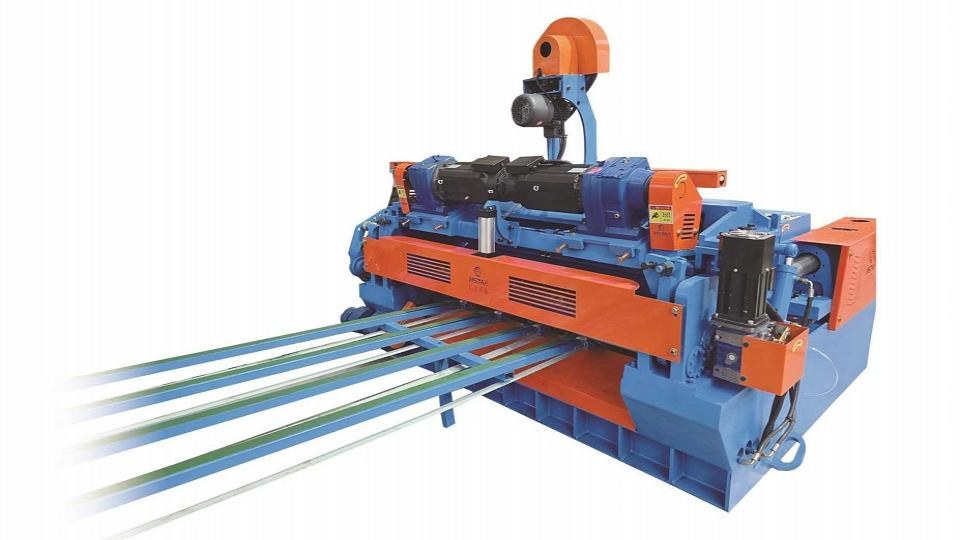

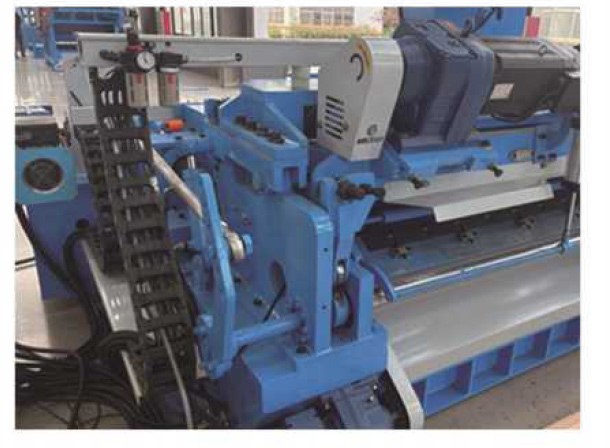

This 4-foot spindleless peeling machine is built around a pressure-bar design. The rollers are driven by two 11 KW servo motors, an 11 KW servo feeds the log and a 1.5 KW servo drives the knife, so the cutting action stays smooth and repeatable. The machine weighs 10000 KG, opens to 500 MM and peels veneer from 1.7 MM to 7.0 MM thick. Its cam sub-rail holds a constant extrusion force against the log, which keeps the veneer thickness uniform, lifts yield by 3-5%, improves drying efficiency by roughly 10-15%, cuts the shrinkage of dried veneer by 2-3% and lowers heat consumption by about 5-8%.

Advantages

Benefits

The machine weighs up to 10000 KG.
Both single and double rollers are equipped with two 11 KW servo motors.
The pushing mechanism uses an 11 KW servo motor, and the cutting blade is driven by a 1.5 KW servo motor.
The maximum opening of the machine is 500 MM.
The peeling thickness is available from 1.7 MM to 7.0 MM.
Improves veneer yield by 3-5%.
Enhances veneer drying efficiency by approximately 10-15%.
Reduces shrinkage of dried veneer by 2-3%.
Lowers heat consumption by about 5-8%.
Delivers a smooth veneer surface with fewer and shallower scratches, and makes it flatter and softer.
