MSPHSS4-90

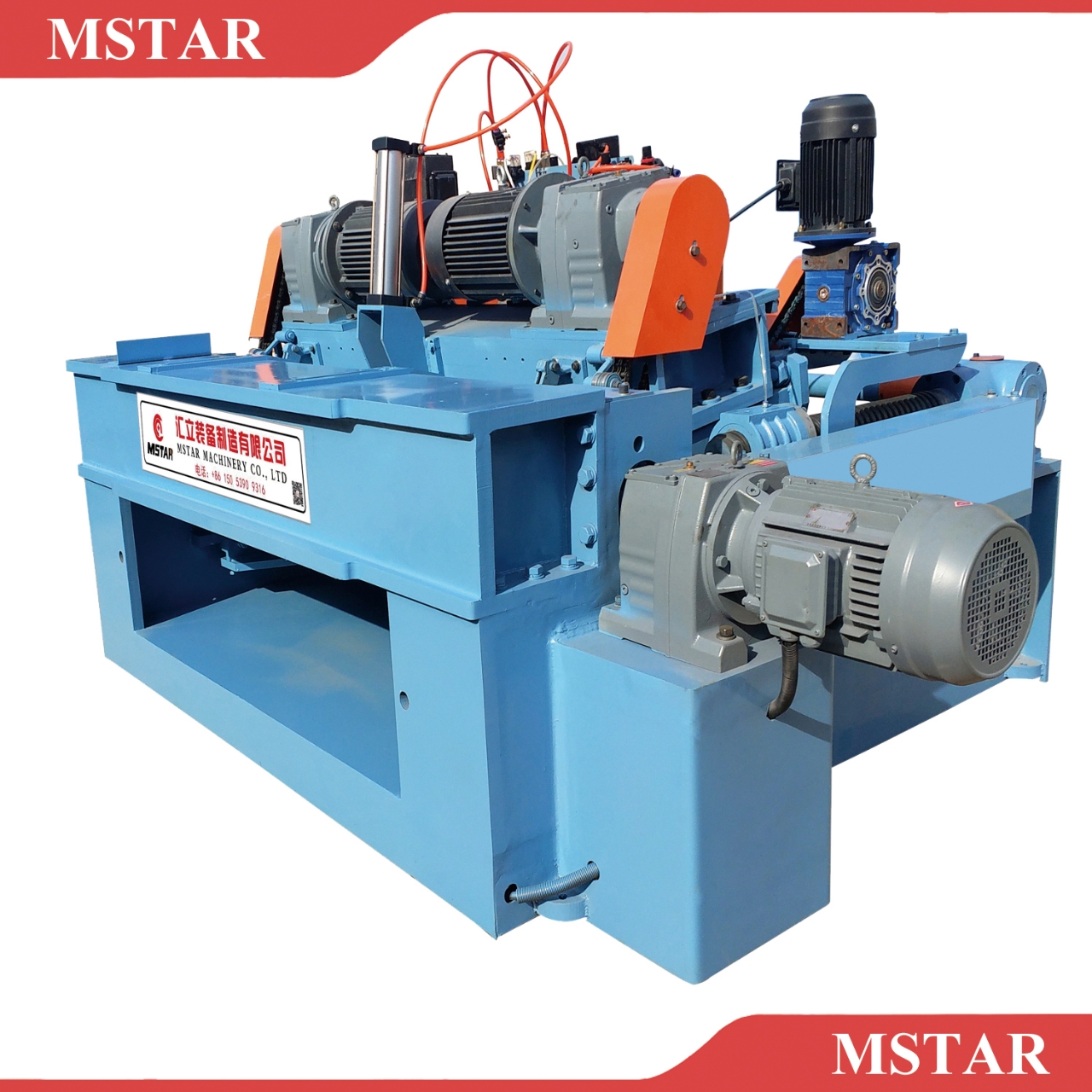

4 Feet 90M/MIN Spindleless Veneer Peeling Machine

Spindleless Lathe MSPHSS4-90
MSPHSS4-90

Key Specifications

  • Max Log Length 1400 MM
  • Max Log Diameter 500 MM
  • Min Core Log 28 MM
  • Veneer Thickness 0.5 - 4.0 MM
  • Veneer Output Speed 30 - 90 M/MIN (adjustable)
  • Total Power 45 KW

Interested in this machine?

Send us your raw material and target capacity. We will recommend the right configuration and come back with a quotation.

Request a quotation

Advantages

Benefits
  • High speed spindleless peeling with stable veneer quality.
  • Save power by up to 50% with efficient drive control.
  • Automatic speed adjustment and smooth discharge.

Specifications

Parameters
Parameter Value
Max Log Length 1400 MM
Max Log Diameter 500 MM
Min Core Log 28 MM
Veneer Thickness 0.5 - 4.0 MM
Veneer Output Speed 30 - 90 M/MIN (adjustable)
Total Power 45 KW
Machine Size 4300 * 2300 * 1600 MM
Machine Weight 6800 KG
