MSPHL5-150

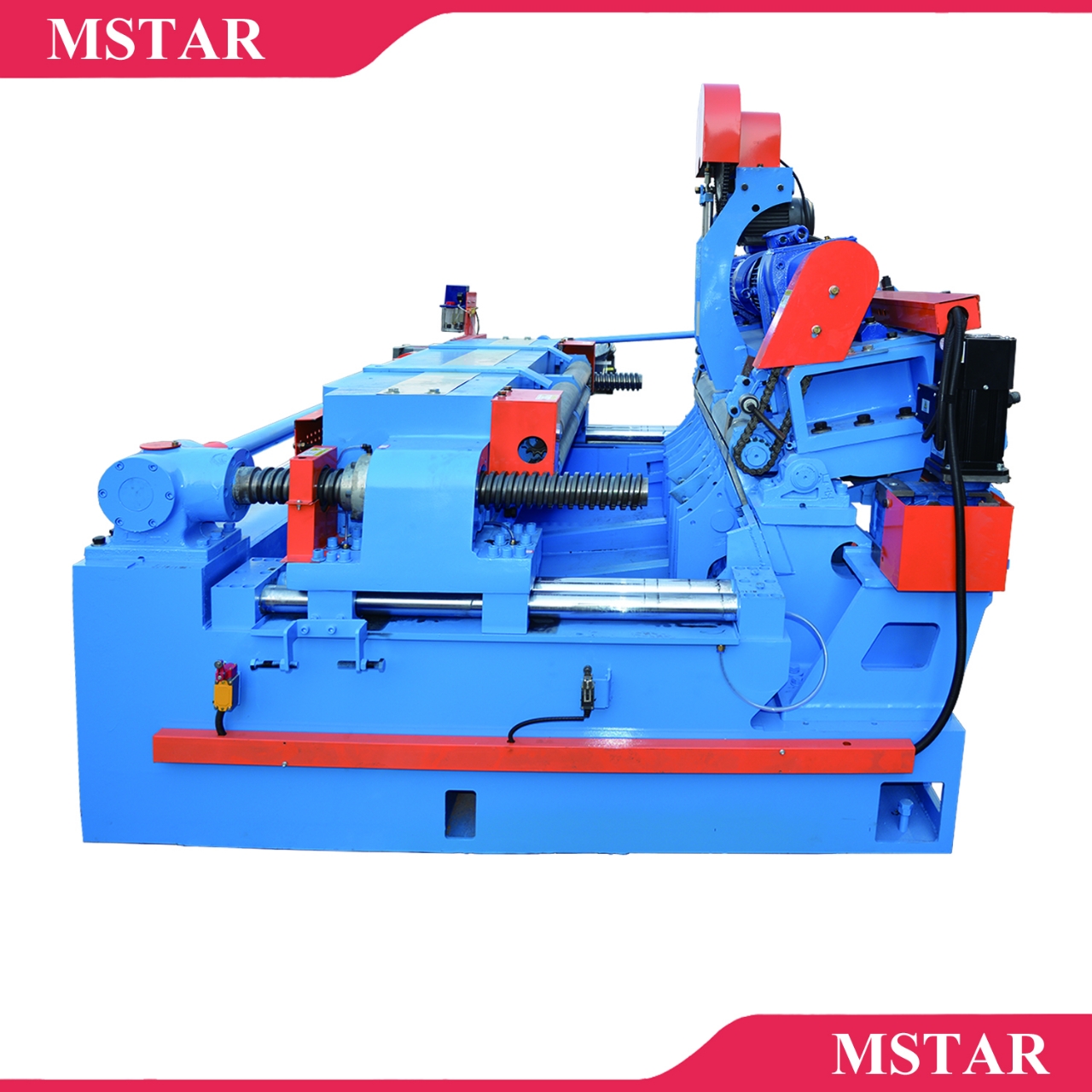

5 Feet 150M/MIN Spindleless Veneer Peeling Machine
Spindleless Lathe
MSPHL5-150
Key Specifications
- Max Log Length 1400 MM
- Max Log Diameter 600 MM
- Min Core Log 32 MM
- Veneer Thickness 0.5 - 4.0 MM
- Veneer Output Speed 50 - 150 M/MIN (adjustable)
- Total Power 68 KW
Interested in this machine?
Send us your raw material and target capacity. We will recommend the right configuration and come back with a quotation.
Request a quotationAdvantages
- Ultra-high speed peeling for fast production requirements.
- Excellent veneer quality at high output speeds.
- Robust design for continuous heavy-duty operation.
Specifications
| Parameter | Value |
|---|---|
| Max Log Length | 1400 MM |
| Max Log Diameter | 600 MM |
| Min Core Log | 32 MM |
| Veneer Thickness | 0.5 - 4.0 MM |
| Veneer Output Speed | 50 - 150 M/MIN (adjustable) |
| Total Power | 68 KW |
| Machine Size | 4800 * 2400 * 1700 MM |
| Machine Weight | 9000 KG |
