MSPHL5-90

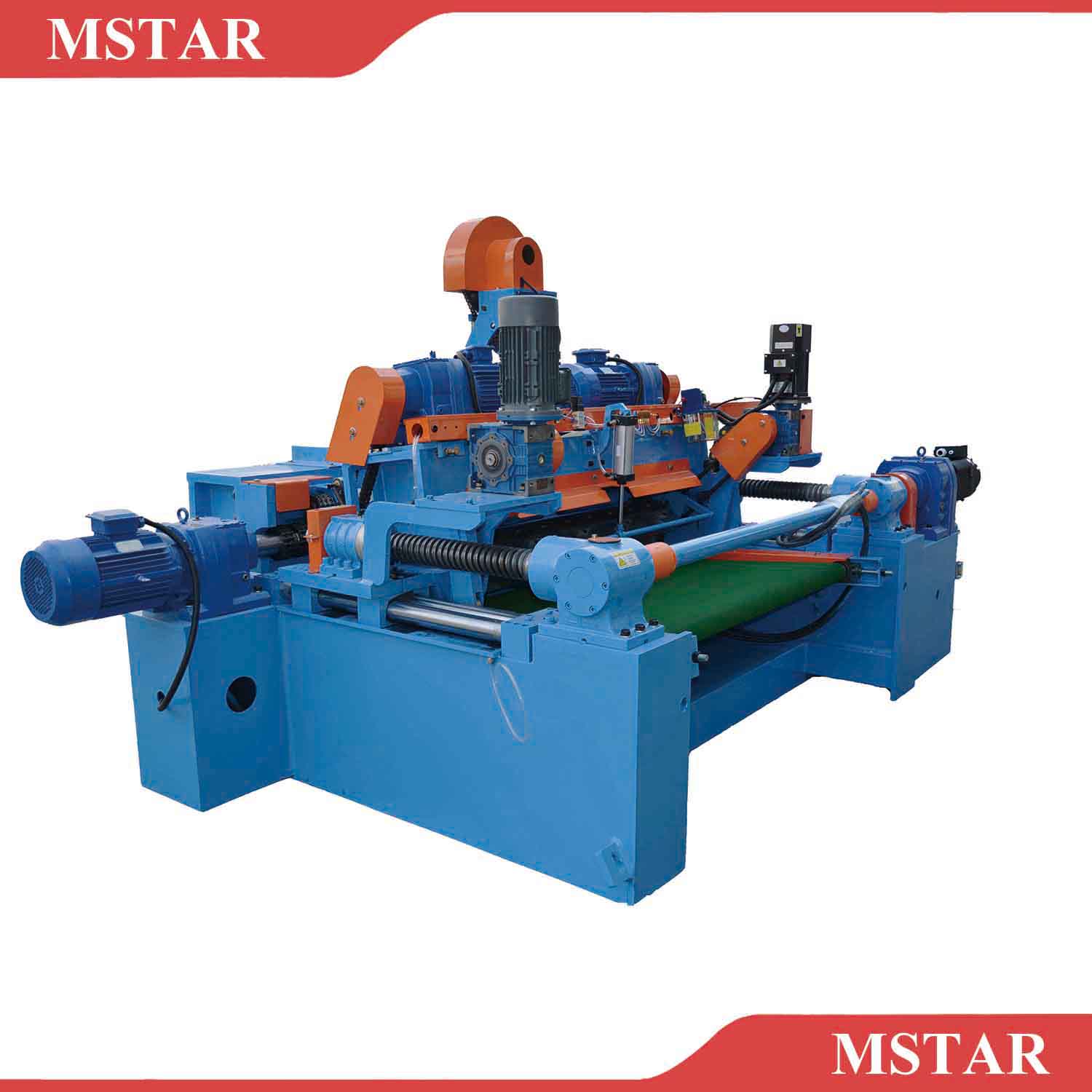

5 Feet 90M/MIN Spindleless Veneer Peeling Machine
Spindleless Lathe
MSPHL5-90
Key Specifications
- Max Log Length 1400 MM
- Max Log Diameter 600 MM
- Min Core Log 32 MM
- Veneer Thickness 0.5 - 4.0 MM
- Veneer Output Speed 30 - 90 M/MIN (adjustable)
- Total Power 52 KW
Interested in this machine?
Send us your raw material and target capacity. We will recommend the right configuration and come back with a quotation.
Request a quotationAdvantages
- Large-diameter log handling with high speed and precision.
- Smooth veneer surface and uniform thickness.
- Stable operation with advanced control system.
Specifications
| Parameter | Value |
|---|---|
| Max Log Length | 1400 MM |
| Max Log Diameter | 600 MM |
| Min Core Log | 32 MM |
| Veneer Thickness | 0.5 - 4.0 MM |
| Veneer Output Speed | 30 - 90 M/MIN (adjustable) |
| Total Power | 52 KW |
| Machine Size | 4700 * 2400 * 1700 MM |
| Machine Weight | 8200 KG |
