Stacker

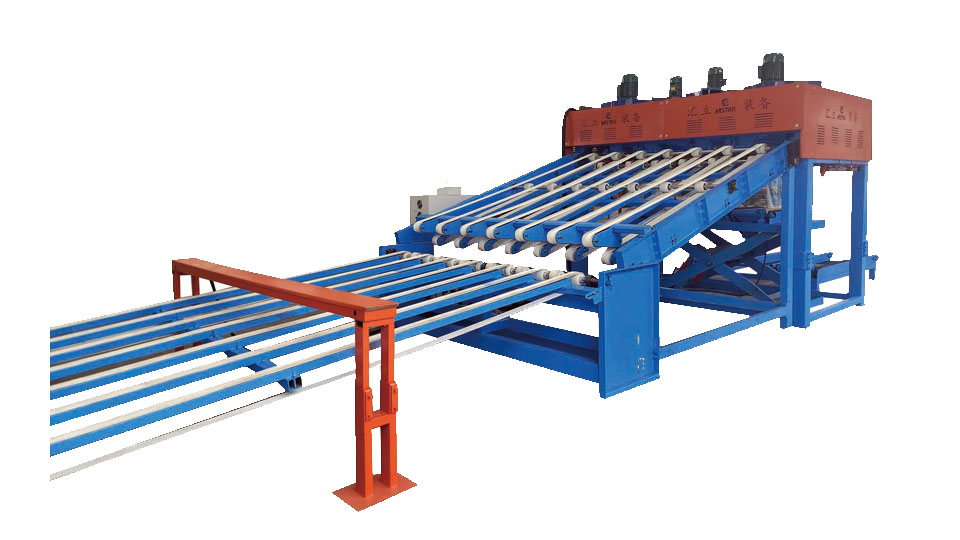

4 Feet / 8 Feet Adsorption Stacker
Stacker
Stacker
Key Specifications
- Model 4 Feet
- Veneer Length 900-1350 MM
- Veneer Width 500-1400 MM
- Veneer Thickness 0.8-4.0 MM
- Stacking Speed 90 M/MIN
- Stacking Height 500-1400 MM
Interested in this machine?
Send us your raw material and target capacity. We will recommend the right configuration and come back with a quotation.
Request a quotationAdvantages
- Easier operation, lower fault
- Save manpower, improve working efficiency
- Stack neatly and better transmission
- Use brand servo motor and electrical sensors, response more sensitive
- With hydraulic lifting table, more steady and durable
- Advanced control system and core technology
Specifications
| Model | 4 Feet | 8 Feet |
|---|---|---|
| Veneer Length | 900-1350 MM | 2600 MM |
| Veneer Width | 500-1400 MM | 500-1400 MM |
| Veneer Thickness | 0.8-4.0 MM | 0.8-4.0 MM |
| Stacking Speed | 90 M/MIN | 80 M/MIN |
| Stacking Height | 500-1400 MM | 500-1400 MM |
| Total Power | 20.8 KW | 31.8 KW |
| Machine Size | 1200x2000x3200 MM | 1200x3400x3200 MM |
| Machine Weight | 4000 KG | 5500 KG |
